PA6 Polyamide 6 fiiling Long Carbon Fiber composite indusrial raw material lcf40

Product information

Nylon 6 (PA6) has the advantages of high mechanical strength, good toughness, excellent compressive performance, good fatigue resistance, creep resistance and so on. It can be used as the pressure material of non-metallic pipes to effectively prevent the deformation of non-metallic pipes and resist the external crushing of pipes.

Long Carbon fiber (LCF) has the characteristics of high strength, high modulus, large specific surface area and length-diameter ratio, and high conductivity, etc. By combining CF with PA6, the mechanical properties of PA6 can be further improved.

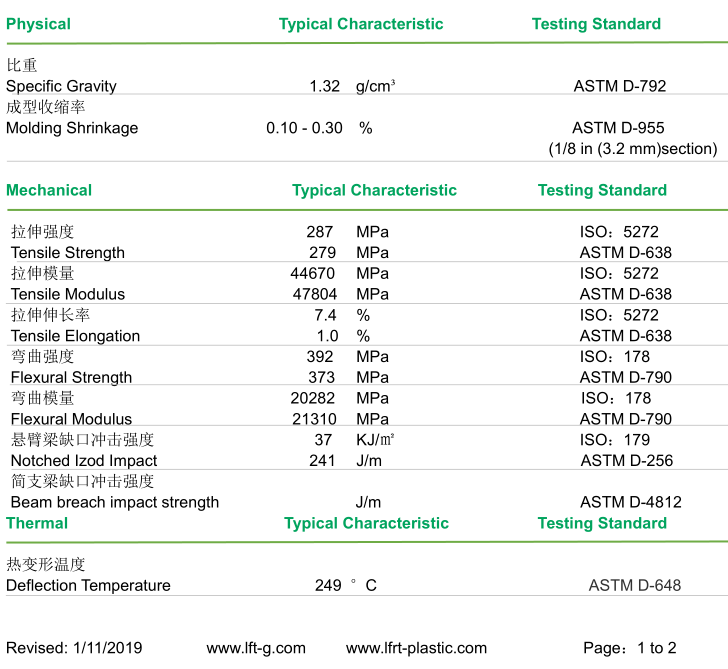

Product datasheet

The datasheet is made by our own lab, for reference only.

Product advantage

1. Light quality and high strength

The density of carbon fiber reinforced resin matrix composites commonly used in automobiles is 1.5 ~ 2.0g/cm3, only ordinary carbon steel 1/4 ~ 1/5, lighter than aluminum alloy about 1/3, and the mechanical properties of carbon fiber composites are better than metal materials, its tensile strength is 3 ~ 4 times higher than steel, stiffness is 2 ~ 3 times higher than steel, fatigue resistance is 2 times higher than steel. The weight is 3 ~ 4 times lighter than steel, and the coefficient of thermal expansion is 4 ~ 5 times smaller.

In terms of specific strength, carbon fiber composite is much stronger than carbon steel, and can exceed some special alloy steel, so it has a higher specific strength.

2. Good designability
The designability of carbon fiber composite is very strong, and it can be flexibly designed according to different application requirements. According to the stress condition of the product structure, the structure and arrangement of the fibers can be adjusted to make anisotropic and different thickness products, and the sandwich structure can be used to improve the overall rigidity of the components, so as to achieve the best lightweight design scheme.

By arranging the carbon fiber according to the force direction, the anisotropy of the strength of the composite can be brought into full play so as to save materials and reduce weight. However, due to the isotropy of metal materials, there will be excessive strength in the other direction after meeting the technical requirements of the maximum force direction.

For the products with corrosion resistance requirements, the matrix resin and reinforcement materials with good corrosion resistance can be selected in the design, while for some other performance requirements, such as dielectric properties, heat resistance, etc., can be met by choosing the appropriate raw materials. In addition, in order to make the product cost reach an acceptable degree, the replacement of low-cost materials can be appropriately selected, such as the mixed layup of different fibers, which can meet the component performance index and save the material cost.

3. Integration of parts

Composite material in the forming of its fluidity, easier to make a variety of shapes of the surface, to achieve an integrated molding effect. Therefore, composite materials are suitable for making automobile parts which are difficult to manufacture, low production efficiency and difficult to ensure accuracy.

For example, Lotus sports car aims to use carbon fiber material for the whole vehicle, and makes the body parts lightweight and integrated, which not only reduces the weight of the body, but also greatly increases the stiffness and strength of the parts and improves the performance of the whole vehicle.

4. Resistance to impact

The impact resistance of carbon fiber composites is also good. The carbon fiber composites based on polymer matrix have certain viscoelastic mechanical properties and can absorb certain impact energy.

5. Good corrosion resistance

Carbon fiber composite products generally do not have rust and corrosion problems. Polymer matrix composites have excellent acid resistance, seawater resistance, alkali, salt and organic solvent resistance.Therefore, it is an excellent corrosion resistant material.

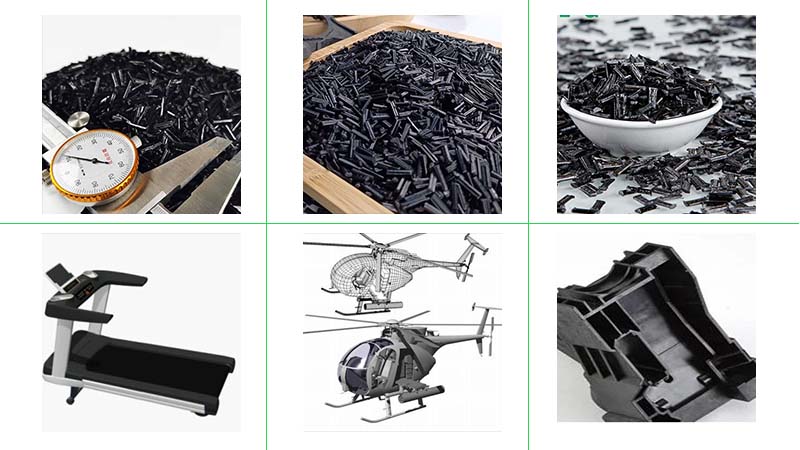

Product application

Early carbon fiber composites were mainly used in the military. With the improvement of material properties, forming technology and the decrease of price, carbon fiber composites are more and more applied to the general industry and sports and leisure fields.

Driven by the global trend of energy saving and environmental protection, the problem of automobile fuel consumption has attracted more and more attention. Lightweight design has become an effective way of automobile energy saving and emission reduction, and the material performance and development trend of carbon fiber composite materials are in line with the development needs of the automobile industry. With the development of new energy vehicles, carbon fiber composite materials will be more and more widely used in automobiles.

Besides, it is also suitable for manufacturing helmets, car bumps and robotic arms etc.
