item no.:
PA-NA-LCF40Payment:
L/C T/T paypalprice range:
11 - 23/$25product origin:
Xiamen FujianColor:
Naturalshipping port:
xiamen portLead Time:
1-15Product Description

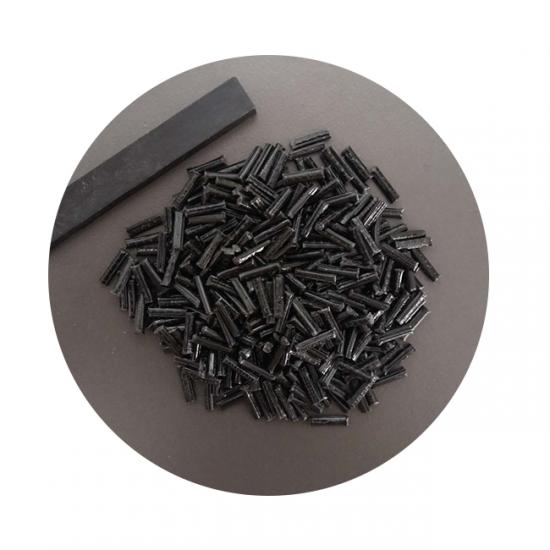

PA6 long carbon fiber is characterized by high temperature resistance, friction resistance, electrical conductivity, thermal conductivity and corrosion resistance, etc. Its shape is fibrous, soft, and can be processed into a variety of fabrics. Due to the preferred orientation of its graphite microcrystalline structure along the fiber axis, it has a high strength and modulus along the fiber axis.The density of carbon fiber is low, so the specific strength and specific modulus are high.
Product Name |
LFT-G® PA6-NA-LCF40 |
Resin Description |
Nylon 6 (Polyamide 6) |
Fiber Type |
Long Carbon Fiber |
Fiber Content | 40% |
Color |
Black |
Processed Method | Injection molding |

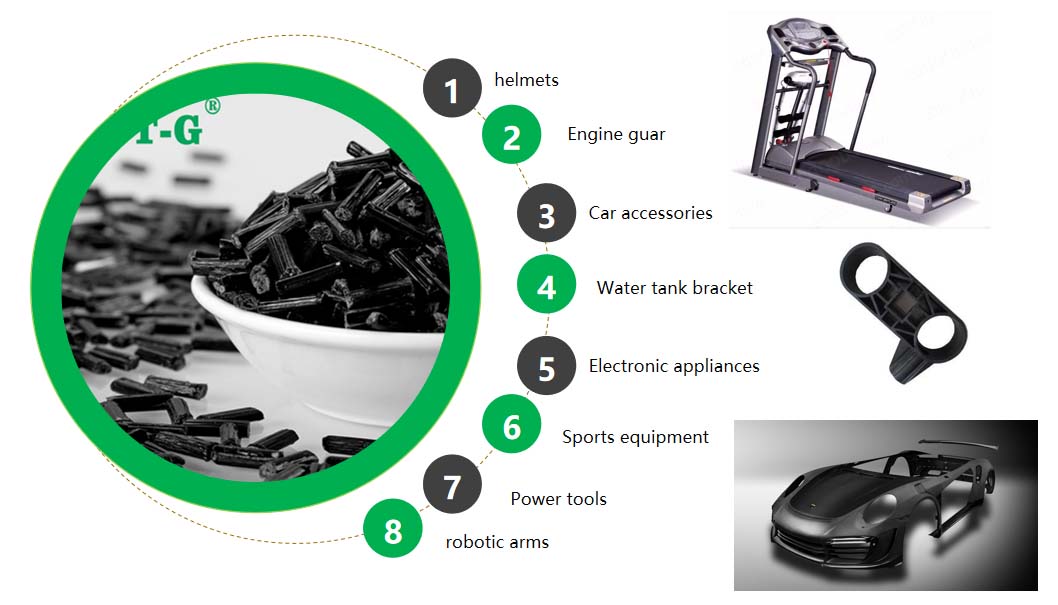

Product Application
Pa6 long fiber reinforced thermoplastic material has a certain electrical conductivity.As electronic appliances, such as integrated circuit industry fast development, the use of current is mostly weak current, the power and the external control signal into the power of the electromagnetic noise close to, so easy to interfere with communication, aviation communication, etc., thus useing plastic PA6 long carbon fiber is an ideal shielding materials, and can be used as an electronics equipment shell for shielding.
Compared with the traditional conductive materials, more lightweight, easy to shape, corrosion resistance, easy to adjust the resistance, the cost is relatively lower
Product Data Sheet
Mechanical |
Typical Characteristic |
Testing Standard |
Tensile Strength |
279 MPa |
ASTM D-638 |
Tensile Modulus |
47804 MPa |
ASTM D-638 |
Tensile Elongation |
1.0% |
ASTM D-638 |
Flexural Strength |
373 MPa |
ASTM D-790 |
Flexural Modulus |
21310 MPa |
ASTM D-790 |
Notched Izod Impact |
241 J/m |
ASTM D-256 |
