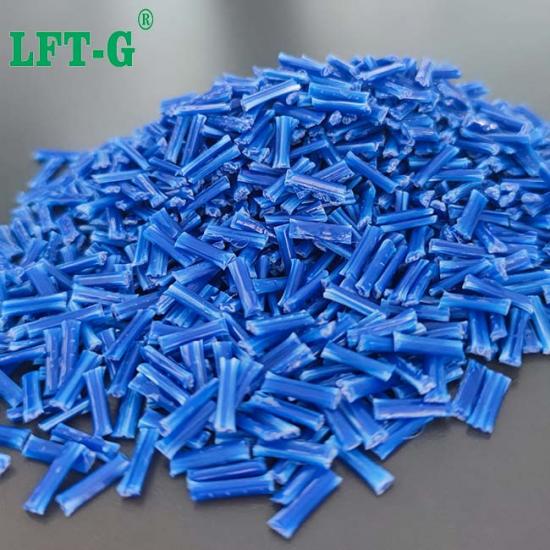

LFT PA66 LGF 50% Glass Fiber Reinforced Plastic Compound

Product Name:PA66 LGF40, Nylon 66 Long Fiber Reinforced Plastic, Polyamide 66 composite

Form: Length about 12mm, High strength, High toughness
Advantage: More than 20 years experience product in fiber reinforced plastic .

  • item no.:

    PA66-NA-LGF50
  • product origin:

    Xiamen Fujian
  • Color:

    Natural
  • shipping port:

    xiamen port
  • Lead Time:

    1-15
inquiry now
Product Detail

long glass fiber reinforced thermoplastic PA66

Product name

Color Product size Material
LFT PA66 LGF 50% Glass Fiber Reinforced Plastic Compound natural & discuss 5-25mm PA66 filing long glass fiber
Contract way Packing Deliver time Port
sale02@lfrtplastic.com
25kg/bag 3-15day xiamen

PA66 LGF50 materials are used in automotive suspension systems. Nowadays, automobile suspension systems are generally made of aluminum alloy or steel. Generally, the following conditions must be met:
1. High mechanical strength (load strength at room temperature above 200MPa)
2. It has good corrosion resistance to salt water/salt spray, engine oil, battery fluid, etc.
3. Maintain good performance in the temperature range of -40°~120°
4. Low creep
The suspension system of composite materials needs to meet these conditions first. In fact, the properties of composite materials are not inferior to traditional cast aluminum. While the performance of the material is improved, it means that the design of parts has greater freedom, such as the shape can be simplified appropriately, or when it can be compared with other parts. When components interfere, conflict, etc., they can make greater concessions. The alternatives to automotive suspension systems are mainly for NVH and weight saving and fuel saving. Most of them use engineering plastics, mainly glass fiber reinforced PA66. After PA66 is added to glass fiber, the rigidity of the material can be optimized.
In 2013, Mercedes-Benz BL-class SUV six-cylinder engine made an engineering plastic engine suspension bracket, and put it into use, and the made material is PA66 GF50. Compared with the original cast aluminum parts, it is reduced by 30%. The low thermal conductivity has a good protective effect on the rubber, and the NVH performance has also been improved. The performance of PA66 LGF50 is comparable to the performance of PA66 CF30. The price is cheaper and the performance is similar. It can be replaced.

PA66 LGF40

Types Applications
PA66 GF15 Automobile cooling baffle, coolant pot, automobile engine parts, switches, electric storage shell, etc
PA66 GF20 Electric drill and motor housings, pump impellers, bushings, wheel sliders, tool handles, bearings, diesel engines and air conditioning all-plastic fans
PA66 GF25
Automobile fan bracket, automobile fuel tank cover, door handle, electronic parts, etc
PA66 GF30

Automobile combination switch, antenna seat, air filter housing, engine separator

PA66 GF40 Mechanical parts, electrical parts, automobile parts
PA66 GF50 Automotive high performance material, door handle, fuel tank lid, lamp holder, wiper wiper, suspension bracket

PA66 nylon+66 application

PA66-NA-LGF50
Physical Typical Characteristic
Testing Standard
Specific Gravity
1.57 g/cm³ ASTM D-792
Mechanical Typical Characteristic Testing Standard

Tensile Strength

247 MPa

253 MPa

ISO: 5272

ASTM D-638

Tensile Modulus

19648 MPa

16763 MPa

ISO: 5272

ASTM D-638

Tensile Elongation

6.8 %

1.7 %

ISO: 5272

ASTM D-638

Flexural Strength

353 MPa

327 MPa

ISO: 178

ASTM D-790

Flexural Modulus

13067 MPa

14033 MPa

ISO: 178

ASTM D-790

Notched Izod Impact

33.8 KJ/㎡

327 J/m

ISO: 179

ASTM D-256

Beam Breach Impact Strength J/m ASTM D-4812
Deflection Temperature @ 264 psi (1820 kPa)
249 ℃ ASTM D-648

Remark:The specific value of the physical property was provided by LFT-G Co, updated at 2020-11-1.

              The specific value is based on the actual production batch test result

LFT-G PA66 long glass fiber
