Product Name：PA66 LGF40, Nylon 66 Long Fiber Reinforced Plastic, Polyamide 66 composite
Form: Length about 12mm, High strength, High toughness
Advantage: More than 20 years experience product in fiber reinforced plastic .
Product Name：PA66 LGF40, Nylon 66 Long Fiber Reinforced Plastic, Polyamide 66 composite
Form: Length about 12mm, High strength, High toughness
Advantage: More than 20 years experience product in fiber reinforced plastic .
item no.:
PA66-NA-LGF40product origin:
Xiamen FujianColor:
Naturalshipping port:
xiamen portLead Time：
1-15
|
Product name |
Color | Product size | Material |
| LFT PA66 Reinforced With 40% Long Glass Fiber Materials | natural & discuss | 5-25mm | PA66 filing long glass fiber |
| Contract way | Packing | Deliver time | Port |
|
sale02@lfrtplastic.com |
25kg/bag | 3-15day | xiamen |

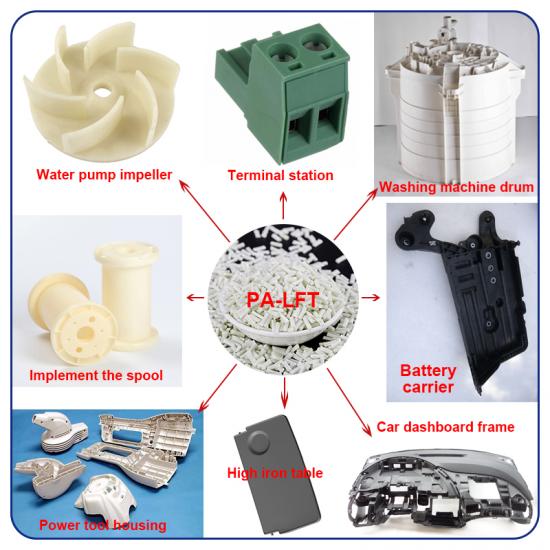

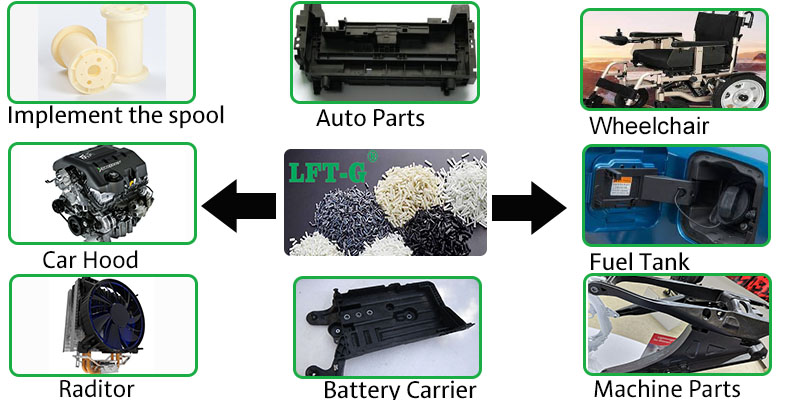

The performance of PA66 original resin is not stronger than that of metals such as aluminum alloy, but it is a big trend to replace steel with plastic and replace aluminum with plastic. By adding long glass fiber to enhance the performance of PA66, it can completely replace metal and is suitable for mass production in any form. At present, the long glass fiber modified material of PA66 LGF40 produced by our company is often used in traditional fuel vehicles, electric vehicles, and machinery. Equipment, and there have been many successful cases. For example: engine cover, car rearview mirror housing, instrument panel frame and so on. It can not only design the structure of plastic products flexibly, but also realize the purpose of reducing weight and cost, energy saving and environmental protection.
| Types | Applications |
| PA66 GF15 |
Automobile cooling baffle, coolant pot, automobile engine parts, switches, electric storage shell, etc |
| PA66 GF20 |
Electric drill and motor housings, pump impellers, bushings, wheel sliders, tool handles, bearings, diesel engines and air conditioning all-plastic fans |
|
PA66 GF25 |
Automobile fan bracket, automobile fuel tank cover, door handle, electronic parts, etc |
| PA66 GF30 |
Automobile combination switch, antenna seat, air filter housing, engine separator |
| PA66 GF40 |
Mechanical parts, electrical parts, automobile parts |
| PA66 GF50 |
Automotive high performance material, door handle, fuel tank lid, lamp holder, wiper wiper |
|
PA66-NA-LGF40 |
||
| Physical |
Typical Characteristic |
Testing Standard |
|
Specific Gravity |
1.45 g/cm³ | ASTM D-792 |
| Mechanical | Typical Characteristic | Testing Standard |
|
Tensile Strength |
180 MPa 181 MPa |
ISO: 5272 ASTM D-638 |
| Tensile Modulus |
13099 MPa 12688 MPa |
ISO: 5272 ASTM D-638 |
| Tensile Elongation |
1.5~2.4 % 1.5~2.4 % |
ISO: 5272 ASTM D-638 |
|
Flexural Strength |
268 MPa 270 MPa |
ISO: 178 ASTM D-790 |
| Flexural Modulus |
10023 MPa 10100 MPa |
ISO: 178 ASTM D-790 |
|
Notched Izod Impact |
48 KJ/㎡ 385 J/m |
ISO: 179 ASTM D-256 |
| Beam Breach Impact Strength | J/m |
ASTM D-4812 |
|
Deflection Temperature @ 264 psi (1820 kPa) |
245 ℃ |
ASTM D-648 |
|
Remark:The specific value of the physical property was provided by LFT-G Co, updated at 2021-10-21. The specific value is based on the actual production batch test result |
||
