LFT PA66 LGF 60% Thermoplastic For Automobile Brake Pedal Bracket

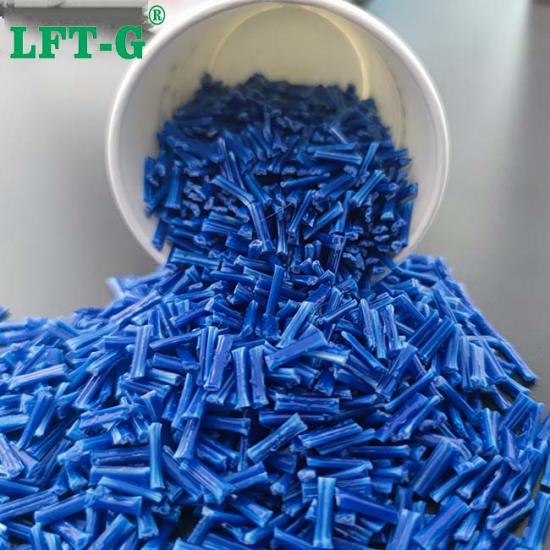

Product Name：PA66 LGF60, Nylon 66 Long Fiber Reinforced Plastic, Polyamide 66 composite

Form: Length about 12mm, High strength, High toughness
Advantage: More than 20 years experience product in fiber reinforced plastic .

item no.:
PA66-NA-LGF60
product origin:
Xiamen Fujian
Color:
Natural
shipping port:
xiamen port
Lead Time：
1-15

inquiry now

Product Detail

long glass fiber reinforced thermoplastic PA66

Product name	Color	Product size	Material
LFT PA66 LGF 60% Thermoplastic For Automobile Brake Pedal Bracket	natural & discuss	5-25mm	PA66 filing long glass fiber
Contract way	Packing	Deliver time	Port
sale02@lfrtplastic.com	25kg/bag	3-15day	xiamen

At present, the most common long glass fiber reinforced plastics mainly include: PP LGF, PA LGF, TPU LGF, PPS LGF, PBT LGF and so on.

Long glass fiber reinforced nylon is divided into many types due to different types of nylon, including PA6, PA66, MXD6, etc., each type of nylon has its own advantages. For example, compared to PA6, PA66 has more outstanding performance, better heat resistance, and better mechanical properties. At the same time, the market price of PA66 is more expensive.

The warpage of PA66 LGF is reduced after long fiber is added, and it is even better than ordinary short fiber PA66. It can maintain high toughness at low temperature, fatigue resistance and abrasion resistance. It has a wide range of uses in automobiles, electronic appliances, sports equipment, power tools, prop handles and high-speed rail accessories, and is the first choice to replace metal.

Case:

Our LFT-G comnpany havd ever has a customers ues PA66 LGF60 to product automobile brake pedal bracket. The pedal bracket of a car must not only have heat resistance and creep resistance, but also have a good impact resistance effect. It does not prevent accidents and avoids major losses. Impact resistance is very important. Our German customers attach great importance to the impact and heat resistance of the materials, so our company recommends PA66 LGF50 and PA66 LGF60 materials to customers. After referring to the two physical properties, the customer asked for relevant information and decided on the sample. I tried two materials at the same time, and the test results of both materials were very good, and the customer also bought a large container for production.

Types	Applications
PA66 GF15	Automobile cooling baffle, coolant pot, automobile engine parts, switches, electric storage shell, etc
PA66 GF20	Electric drill and motor housings, pump impellers, bushings, wheel sliders, tool handles, bearings, diesel engines and air conditioning all-plastic fans
PA66 GF25	Automobile fan bracket, automobile fuel tank cover, door handle, electronic parts, etc
PA66 GF30	Automobile combination switch, antenna seat, air filter housing, engine separator
PA66 GF40	Mechanical parts, electrical parts, automobile parts
PA66 GF50	Automotive high performance material, door handle, fuel tank lid, lamp holder, wiper wiper, suspension bracket
PA66 GF60	Automobile Brake Pedal Bracket, Auto parts

PA66 nylon+66 application

PA66 LGF40

PA66-NA-LGF60
Physical	Typical Characteristic	Testing Standard
Specific Gravity	1.61 g/cm³	ASTM D-792
Mechanical	Typical Characteristic	Testing Standard
Tensile Strength	259 MPa 258 MPa	ISO: 5272 ASTM D-638
Tensile Modulus	20148 MPa 17638 MPa	ISO: 5272 ASTM D-638
Tensile Elongation	6.8 % 1.7 %	ISO: 5272 ASTM D-638
Flexural Strength	363 MPa 347 MPa	ISO: 178 ASTM D-790
Flexural Modulus	14863 MPa 13800 MPa	ISO: 178 ASTM D-790
Notched Izod Impact	35.2 KJ/㎡ 346 J/m	ISO: 179 ASTM D-256
Beam Breach Impact Strength	J/m	ASTM D-4812
Deflection Temperature @ 264 psi (1820 kPa)	249 ℃	ASTM D-648
Remark:The specific value of the physical property was provided by LFT-G Co, updated at 2020-10-12. The specific value is based on the actual production batch test result

Contracts me:Lucy

Contracts email:sale02@lfrtplastic.com

Contracts wechat/whatsapp:+86 139 5009 5727
