Long Glass fiber Polymer

/

Long Glass fiber Reinforced Polyamide nylon PA12

/Xiamen LFT-G High strength Polyamide 12 composite lgf virgin white color for automotive

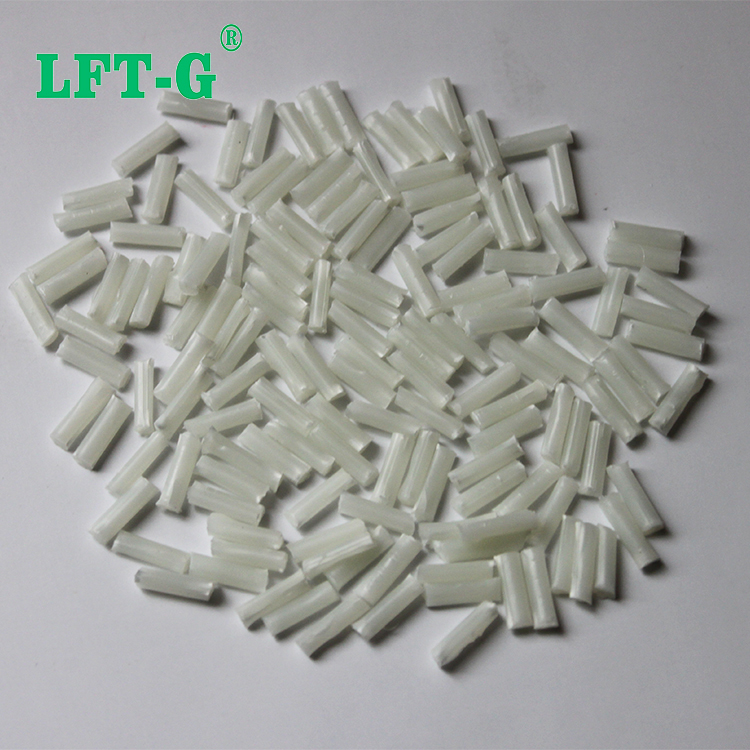

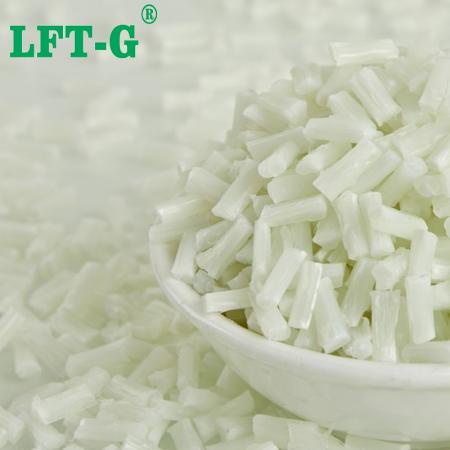

Xiamen LFT-G High strength Polyamide 12 composite lgf virgin white color for automotive

Product number: PA12-NA-LGF

Fiber specification: 20%-60%

Product feature: High strength, High toughness and durability

Product application: Suitable for automotive, sports parts, solar energy, photovoltaic industry and other industries.

  • item no.:

    PA12-NA-LGF
  • Payment:

    T/T or L/C (other payment ways also can be di
  • product origin:

    Xiamen, China
  • Color:

    Original color (also can be customized)
  • shipping port:

    Xiamen, China
inquiry now
Product Detail

Product information


PA12 is nylon 12, also known as polydodecactam, polylauractam, is a long carbon chain nylon. The basic material for its polymerization is butadiene, a semi-crystalline - crystalline thermoplastic material. Nylon 12 is the most widely used long carbon chain nylon, in addition to most of the general properties of nylon, low water absorption, and has high dimensional stability, high temperature resistance, corrosion resistance, good toughness, easy processing and other advantages. Compared with PA11, another long carbon chain nylon material, the price of butadiene, the raw material of PA12, is only one third of the price of castor oil, the raw material of PA11. It can replace PA11 and be applied in most scenes, and has a wide range of applications in automobile fuel pipe, air brake hose, submarine cable, 3D printing and many other fields.

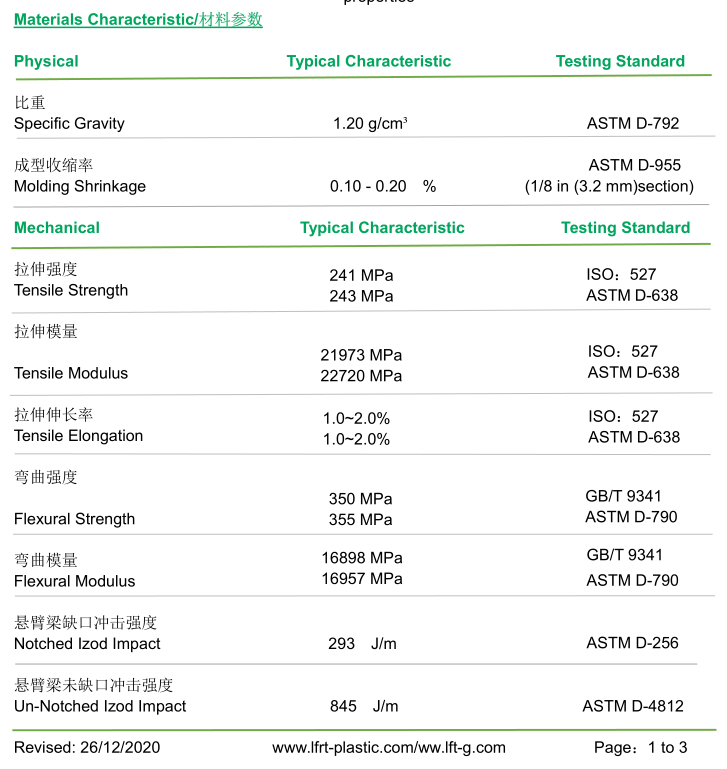

In long chain nylon, compared with other nylon materials, PA12 has great advantages, such as the lowest water absorption rate, the lowest density, low melting point, impact resistance, friction resistance, low temperature resistance, fuel resistance, good dimensional stability, good anti-noise effect. PA12 has the properties of PA6, PA66 and polyolefin (PE, PP) at the same time, achieving the combination of lightweight and physical and chemical properties, and has advantages in performance. The following table shows the performance data:





Product detail


There are a large number of non-polar methylene groups in nylon 12, which makes nylon 12 molecular chain more compliant. The amide group in nylon 12 is polar, and the cohesion energy is very large, it can form hydrogen bonds between the molecules, so that the molecular arrangement is regular. Therefore, nylon 12 has high crystallinity and high strength. Nylon 12 has low water absorption, good low temperature resistance, good air tightness, excellent alkali and oil resistance, medium resistance to alcohol, inorganic dilute acid and aromatic hydrocarbons, good mechanical and electrical properties, and is a self-flameout material.




1) Density
The relative density of nylon 12 is only 1.01-1.03, which is the smallest among all engineering plastics, which has a certain effect on reducing the quality of vehicles and reducing fuel consumption. When compared by unit volume, nylon 12 has advantages in price and performance.

2) Melting point
The melting point of nylon 12 is 172-178℃, slightly lower than nylon 11, can fully meet the requirements of automobile fuel pipe and brake pipe working environment temperature.

3) Water absorption
As we all know, the biggest disadvantage of nylon products is large water absorption, dimensional stability is difficult to ensure. And PA12 has the lowest water absorption rate of nylon products, this is due to the methylene molecules in nylon 12 greatly reduce the hydrophilic groups, which makes nylon 12 has a great advantage.

4) Impact strength
Impact strength is an important technical index, especially for nylon 12 pipe often exposed to air. Nylon 12 under -20℃ and -40℃ according to the standard test, no fracture phenomenon, fully meet the requirements of use. Nylon 12 has excellent impact resistance.

5) Low temperature performance
Nylon 12 has the lowest brittleness temperature of -70 degrees Celsius, so it can be widely used in low-temperature resistant parts. The following table lists the brittleness temperature of nylon resin:

6) Flexibility
The influence of plasticizer on the physical properties of nylon 12 is concentrated on the elastic modulus of resin. Nylon 12 has three basic types of resin, their main difference is due to the plasticizer content of different forms of flexibility. The elastic modulus of resin decreases with the increase of extractable component content of plasticizer.

7) Low wear and low friction performance
Nylon 12 has excellent low abrasion and low friction properties and self lubricating properties, so the friction noise of nylon 12 products is very low. The table below shows the values obtained for nylon 12 and other plastics by Tabor disk tests.

8) Fuel resistance
In automobiles, the mixture of oxygenated fuel, high aromatic fuel and alcohol currently used can cause the breakdown of many hose materials. After the test, only nylon 11, nylon 12 and fluorocarbon resin elastomers can be used in this environment. Almost other types of nylon melt under the action of automobile fuel, resulting in a change in size.

9) Resistance to zinc chloride solution
Zinc chloride is found under the car. Under certain temperature and humidity, the salt on the road reacts with galvanized steel plate or zinc-containing primer to form the corrosive zinc chloride. In addition, ozone aging, ultraviolet radiation, temperature conditions and so on, will bring different degrees of damage to the parts, reduce the service life.
Nylon 12 is very resistant to zinc chloride solution. Because there is no unsaturated double bond in nylon 12 which is susceptible to ozone attack, ozone aging does not occur. In addition, Nylon 12 UV resistance is also excellent.

10) Excellent electrical performance
The long carbon chain structure of nylon gives it excellent electrical properties. Because of the low water absorption of long carbon chain nylon, it still has excellent dielectric properties in the humid environment, which is not possessed by short carbon chain nylon such as nylon 6 and nylon 66.


Application


PA12 is the most widely used long carbon chain nylon. In addition to having most of the general properties of ordinary nylon, it has low water absorption, high dimensional stability, high temperature resistance, corrosion resistance, good toughness, easy processing and other advantages. Compared with PA11, another long carbon chain nylon material, the price of butadiene, the raw material of PA12, is only one third of the price of castor oil, the raw material of PA11. It can replace PA11 and be applied in most scenes, and has a wide range of applications in automobile fuel pipe, air brake hose, submarine cable, 3D printing and many other fields.

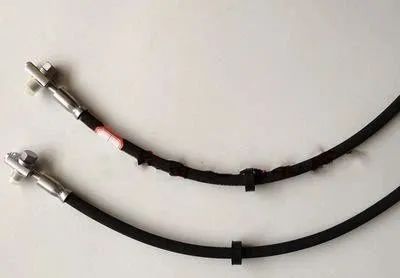

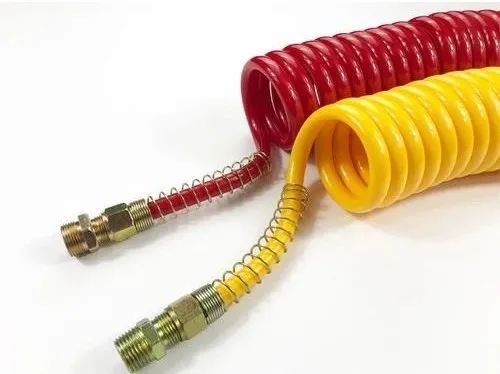

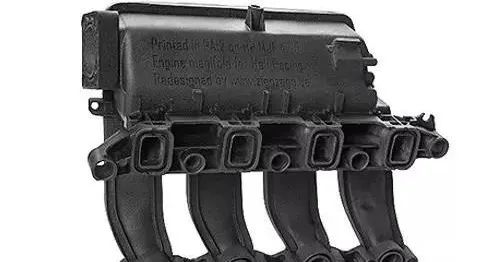

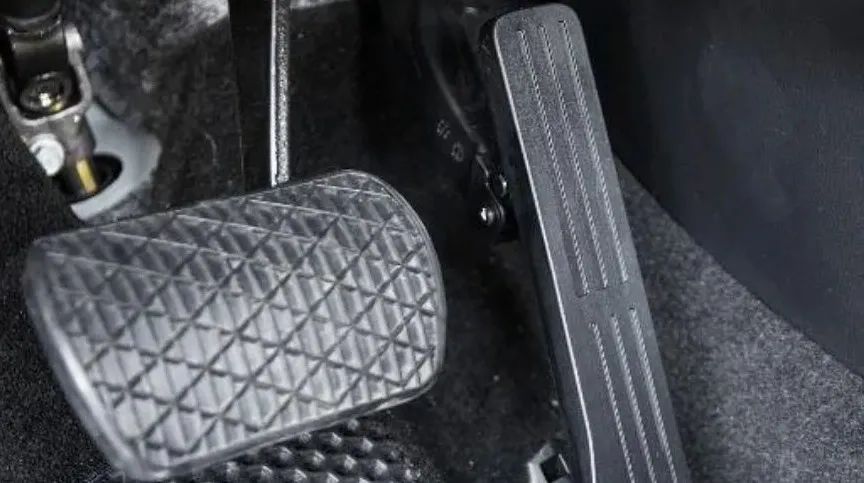

1. Automotive

Nylon 12 can be widely used in automotive fluid transmission lines, including fuel lines, clutch lines, vacuum brake supercharger lines, air brake lines, battery coolant lines and the joints of the above pipelines, because of its safety and reliability, is an excellent automotive lightweight material.






2. Pipe cables
Over the years, PA12 has been used in flexible risers, gas pipes, linings, and steel pipe coatings both onshore and offshore to protect against seawater erosion and oil fluid corrosion, flexible risers for the delivery of subsea oil and gas products and incoming fluids, and natural gas distribution systems at pressures up to 20bar. Nylon 12 has low embrittlement temperature and excellent weather resistance, especially suitable for the manufacture of field special purpose communication cables in all climates (-50 ~ 70℃).

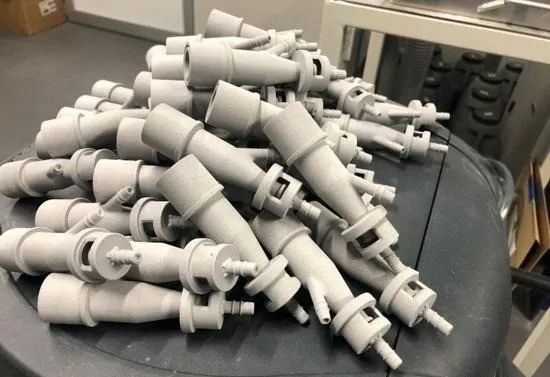

3.3D printing
Compared with other materials, PA12 powder has excellent characteristics such as high fluidity, low static electricity, low water absorption, moderate melting point and high dimensional accuracy of products. The fatigue resistance and toughness can also meet the needs of higher mechanical properties of the workpiece, so nylon 12 gradually become the ideal material for 3D printing engineering plastics.

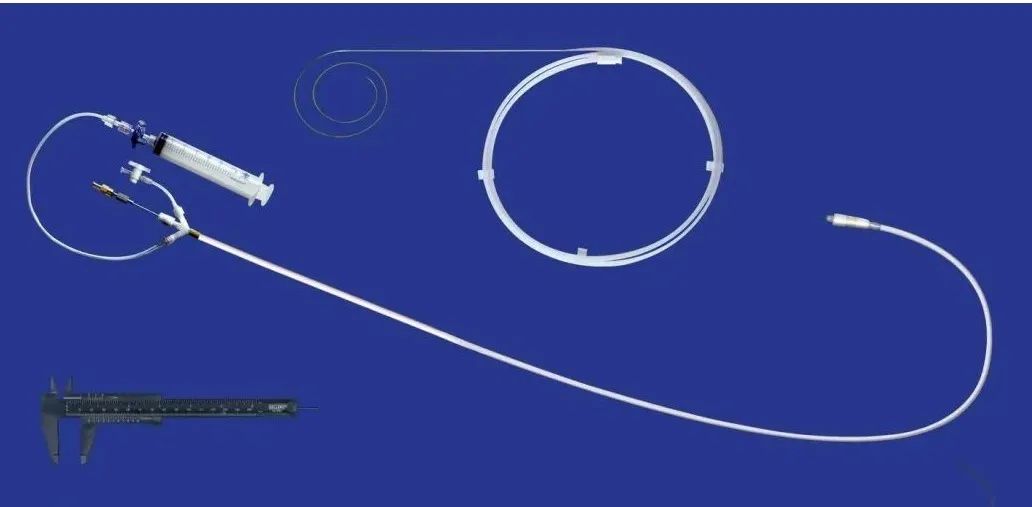

4.Medical care
PA12 is also used as a nursing medical material. The mechanical properties of the catheter material are particularly important. The catheter must be easy to thread, but not bend and never break. PA12 is an excellent material for catheter production due to its high bursting pressure, good flexibility, chemical resistance, compatibility with body fluids and non-toxic. It meets the requirements of the United States Food and Drug Administration and the European Union for medical products.

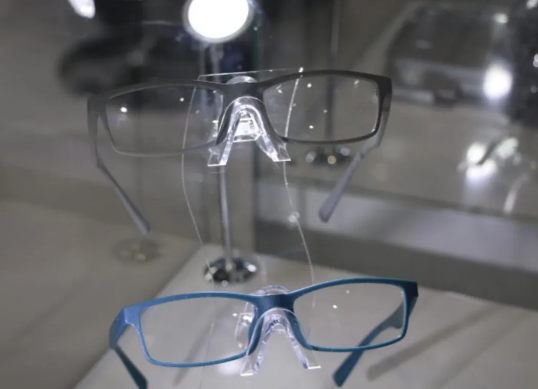

5. Daily necessities
PA12 excellent fatigue resistance, no spraying, can be used for glasses frames.



6. Advanced coatings and adhesives

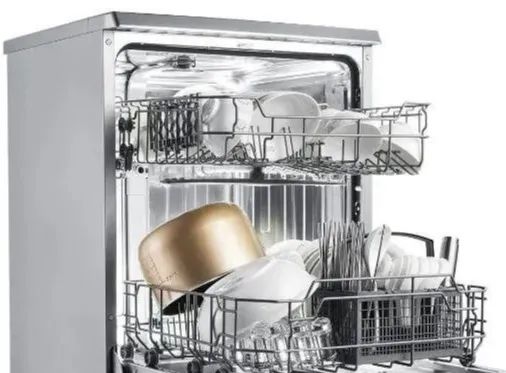

Nylon 12 is used to coat the metal, the best friction resistance, so it is often used in the production of advanced coatings and adhesives. PA12 can be used in the bowl holder of the new dishwasher to ensure that the metal bowl holder is not worn in the environment of high temperature detergent, and the service life is longer. It can also be applied to outdoor furniture, such as park benches, which can effectively prevent metal corrosion after coating with PA12.




Product supplier


Xiamen LFT composite company that focuses on LFT&LFRT. Long Glass Fiber Series (LGF) & Long Carbon Fiber Series (LCF). The company's thermoplastic LFT can be used for LFT-G injection molding and extrusion, and can also be used for LFT-D molding. It can be produced according to customer requirements: 5~25mm length.


The company's long-fiber continuous infiltration reinforced thermoplastics have passed ISO9001 & 16949 system certification, and the products have obtained lots of national trademarks and patents.
