Long Carbon fiber Polymer

/

Long carbon fiber Reinforced Polyamide nylon PA66

/LFT Polyamide 66 high performance Long Carbon Fiber Reinforcement

LFT Polyamide 66 high performance Long Carbon Fiber Reinforcement

  • item no.:

    PA66-NA-LCF
  • product origin:

    China
  • Color:

    Natural color or Customized
  • shipping port:

    Xiamen
  • Lead Time:

    3-15days
inquiry now
Product Detail

Roving glass fiber pa6 lcf30

PA66 carbon fiber conductive plastic reinforced nylon plastic material, which combines the electrical conductivity of metal (a voltage applied to both ends of the material, through the material through the current) and the various properties of plastic (that is, material molecules are composed of many small, repeated structural units).Density (g/cm3) : 1.2 ~ 1.7, conductive anti-static plastic shielding efficiency (30MHz-10GHz) : 60-85dB;, mainly used in electronics, integrated circuit packaging, electromagnetic shielding and other fields.It is an important type of conductive polymer materials.Conductive anti-static material Semi-conductive shielding material used in medium and high voltage cables.Conductive plastic is a kind of functional polymer material which mixes resin and conductive material and is processed in the way of plastic.Conductive anti-static plastic product density is low, the weight is reduced by 50%;Bending modulus (MPa) : 2400 ~ 6000.

PA66 Roving carbon fiber

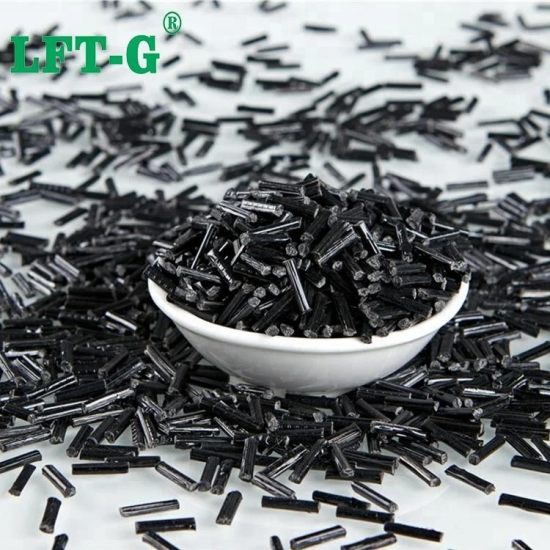

LFT composite pellets

With the increase of carbon fiber content, the tensile strength, flexural strength and flexural elastic modulus of the composites all increase.The impact strength of the cantilever beam increases first and then decreases, and the impact strength reaches its maximum value when the carbon fiber mass fraction is 30%, which is.

The reason is that when the fiber content is relatively large, the fracture stress and its energy threshold increase, and the absorption methods such as elongation of fracture path caused by avoiding fiber, demonding of fiber-matrix interface and fiber pull-out are added, while the internal notching effect of fiber increases slowly, thus increasing the impact strength.When the mass fraction of carbon fiber is more than 30%, the internal notching effect of carbon fiber increases with the increase of carbon fiber content, and the impact strength decreases.

PA66 nylon carbon fiber price

PA66 LCF30 CARBON FIBER

For more technical questions, please contact us:+ 86 139 5009 5727

WEB:www.lft-g.com
