Hot sell PA66 composite material filling long carbon fiber polyamide 66 for aerospace

Product number: PA66-NA-LCF50

Fiber specification: 20%-60%

Product feature: High toughness, Light weight, High strength, Wear reisistance, Corrosion resistance, Creep resistance, Conduction, Heat transfer

Product application: The wing of the aircraft, Duck wing, Stable wing, Nacelle and other aerospace fileds.

  • item no.:

    PA66-NA-LCF50
  • Payment:

    T/T or L/C (other payment ways also can be di
  • product origin:

    Xiamen, China
  • Color:

    Original color (also can be customized)
  • shipping port:

    Xiamen, China
inquiry now
Product Detail

Product information


PA66, also known as Polyamide 66, nylon 66, full name polyadipyladipyldiamine, made of adipylacid and adipyldiamine condensation.


As the most widely used variety, PA66 shows translucent or opaque opalescence, with excellent comprehensive properties such as wear resistance, self-lubrication, high mechanical strength, high rigidity, high heat resistance, low friction coefficient and strong impact resistance.

In addition to maintaining strong strength and stiffness at higher temperatures, PA66 is also resistant to acid, alkali, most inorganic salt aqueous solution, alkyl halides, hydrocarbons, esters, ketones and other corrosion, but easily soluble in phenol, formic acid and other polar solvents.

Compared with PA6, PA66 has better performance in wear resistance, melting point and thermal deformation temperature, but it also has higher water absorption and poor dimensional stability. The influence of hygroscopic property on geometric stability should be fully considered in product design.

In order to improve mechanical properties, a variety of modifiers, such as glass fiber and carbon fiber, are often added to PA66. It is relatively easy to form alloy resin, suitable compatibilizer is the key to the formation of tough nylon.

According to IHS, about 60% of PA66 is used in engineering plastics. About 88% of PA66 is processed into various parts by injection molding, and about 12% is processed into corresponding products by extrusion, blow molding, etc.

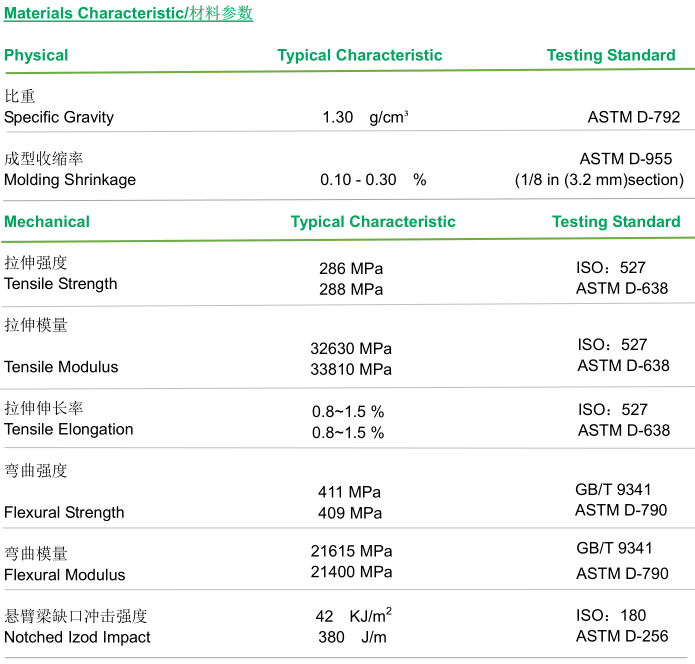

Product datasheet

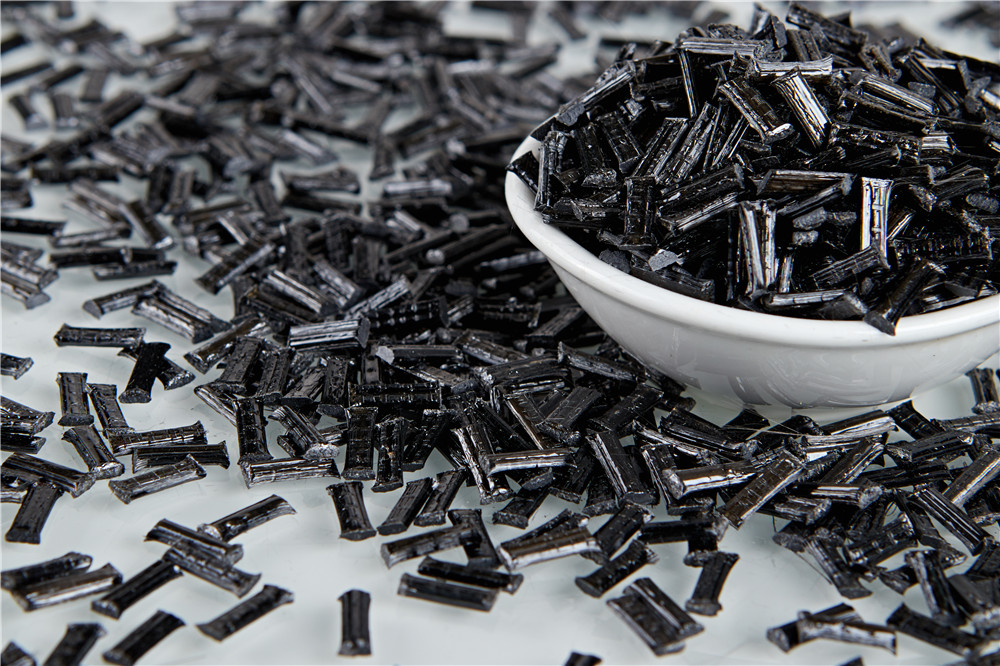

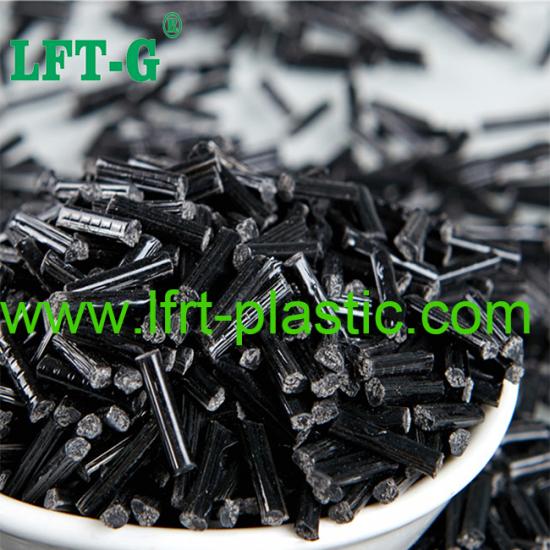

Product images


The color is natural black or be customized as you request.

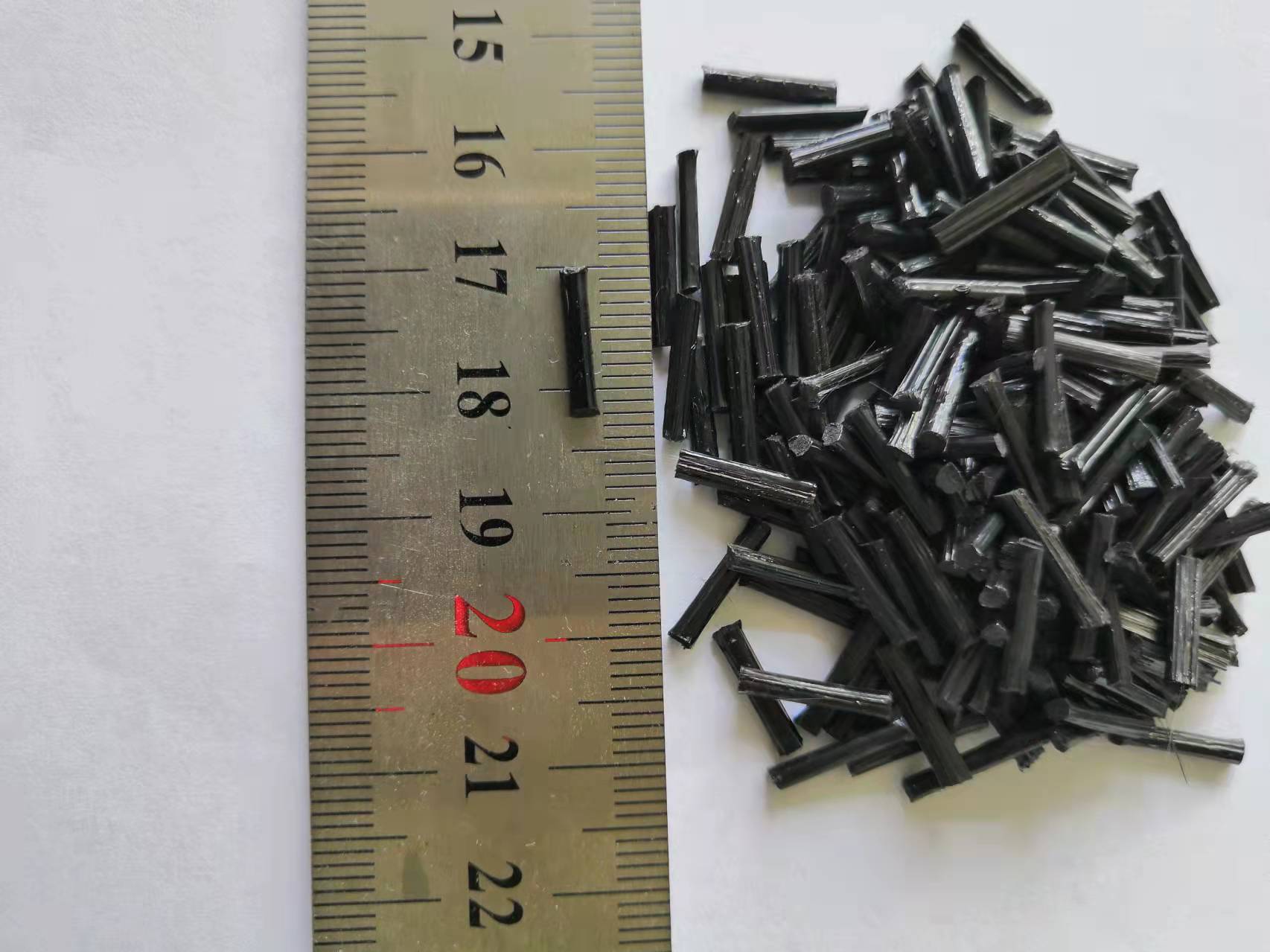

And the length is between 5~25mm.

Other requirements also can be discussed.





Product application


Carbon fiber (CF) is an excellent reinforcement material with high strength, high modulus, high temperature resistance, electrical and thermal conductivity, damping, shock absorption and noise reduction properties.


With the characteristics of light weight and high strength, it is used in aerospace, automobile industry, high-speed EMU and other transportation fields, wind turbine blades, bridge construction and other building materials, as well as sports and leisure products manufacturing and many other fields. It is a dual-use emerging material.





We can offer you:


1. LFT&LFRT material technical parameters and leading edge design;


2.Mold front design and recommendations;


3.Provide technical support such as injection molding and extrusion molding.



System Certification


Quality Management System ISO9001/4949 Certification

Naional Laboratory Accreditation Certificate

Modified Plastics Innovation Enterprise

Honorary Certificate

Heavy metal REACH & ROHS testing
