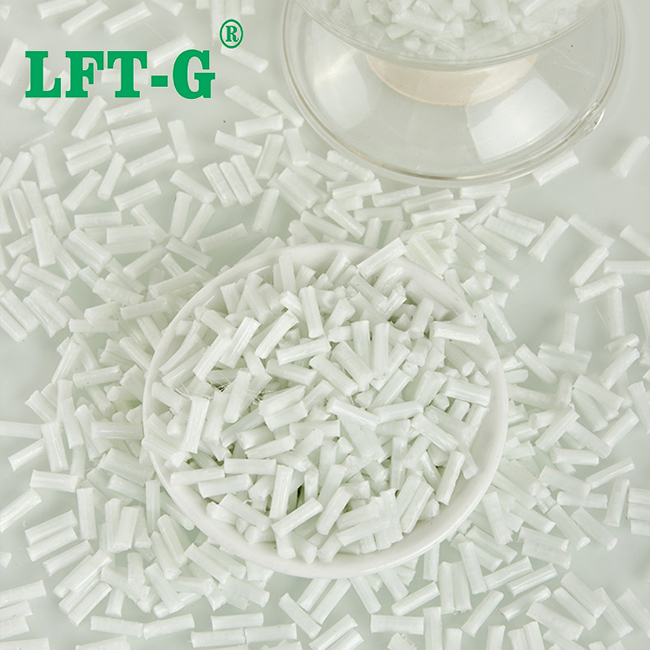

LFT-G HDPE filling long glass fiber high toughness and stiffness modified plastic for shell

HDPE Introduction

Poor mechanical properties, poor air permeability, easy to deformation, easy to aging, easy to brittle, brittle than PP, easy stress cracking, low surface hardness, easy to scratch. Difficult to print, when printing, surface discharge treatment is required, can not be plated, and the surface is not glossy.

HDPE-Long glass fiber

Because of its high crystallinity, poor impact strength and environmental cracking resistance and other defects, limiting its scope of application, so a lot of toughening modification HDPE research work has been carried out at home and abroad. Our company has greatly improved the performance of HDPE through the way of co-blending modification.

Long fiber reinforced thermoplastic composites are reinforced thermoplastics with fiber lengths greater than 10mm. The reinforcing fibers are mainly glass fibers, carbon fibers, etc. Depending on the type of resin with appropriate fiber surface treatment, better results can be achieved.

The addition of fiber material to the resin can greatly improve the overall material performance. Fiber composites absorb external forces in three ways: fiber pullout, fiber breakage, and resin fracture. The increase of fiber length consumes more energy for fiber pull-out, which is beneficial to the improvement of impact strength; the end of fiber in the composite is often the initiation point of crack growth, and the small number of long fiber ends also makes the impact strength increase; the long fiber blends entangle, flip and bend each other when filling the mold, unlike the short fiber blends which are arranged in the flow direction, therefore, the long fiber blends molded products are better than the same molded parts of short fiber blends. Therefore, compared with the same molded parts of short fiber blends, the long fiber blends have higher isotropy, better straightness, less warpage, and therefore better dimensional stability; the heat deflection temperature of long fiber reinforced thermoplastics is also increased than that of short fiber blends. Therefore, long-fiber composites exhibit better performance than short-fiber composites, which can improve rigidity, compression strength, bending strength, and creep resistance.

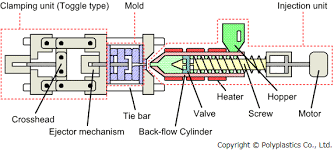

Process

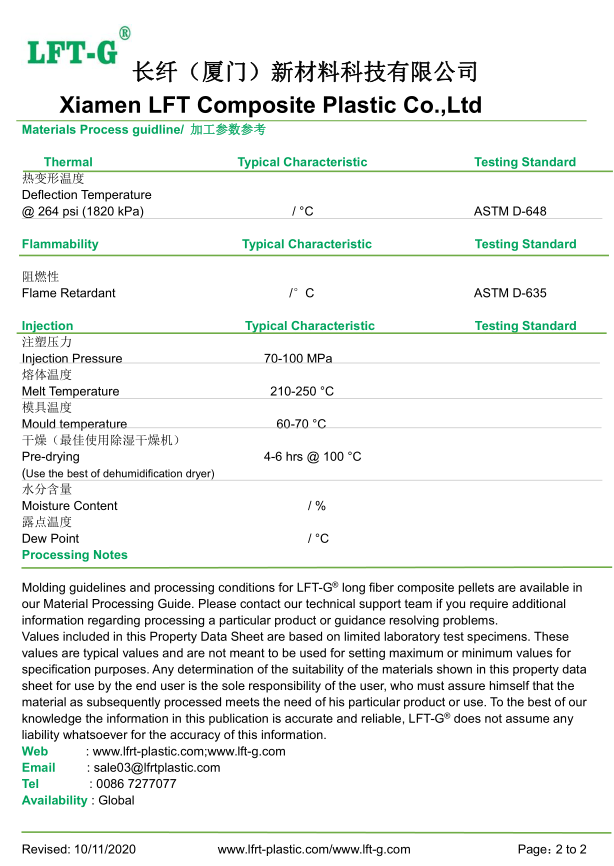

TDS for your reference

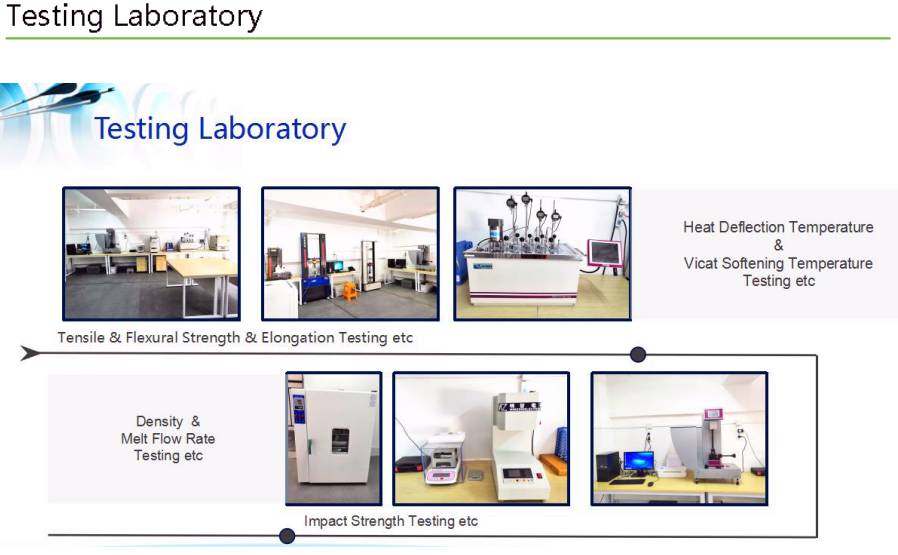

Tests

Certifications

Quality Management System ISO9001/16949 Certification

National Laboratory Accreditation Certificate

Modified Plastics Innovation Enterprise

Honorary Certificate

Heavy metal REACH & ROSH testing

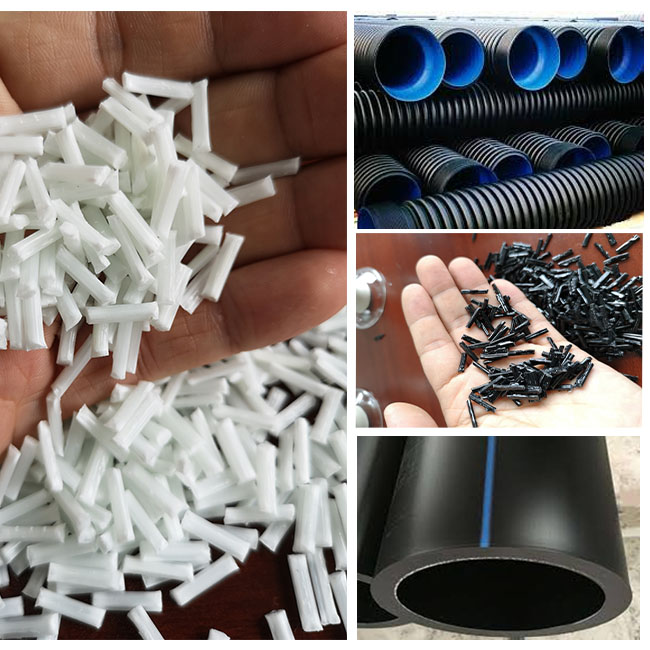

Application

We will provide technical supports according to your product's images.

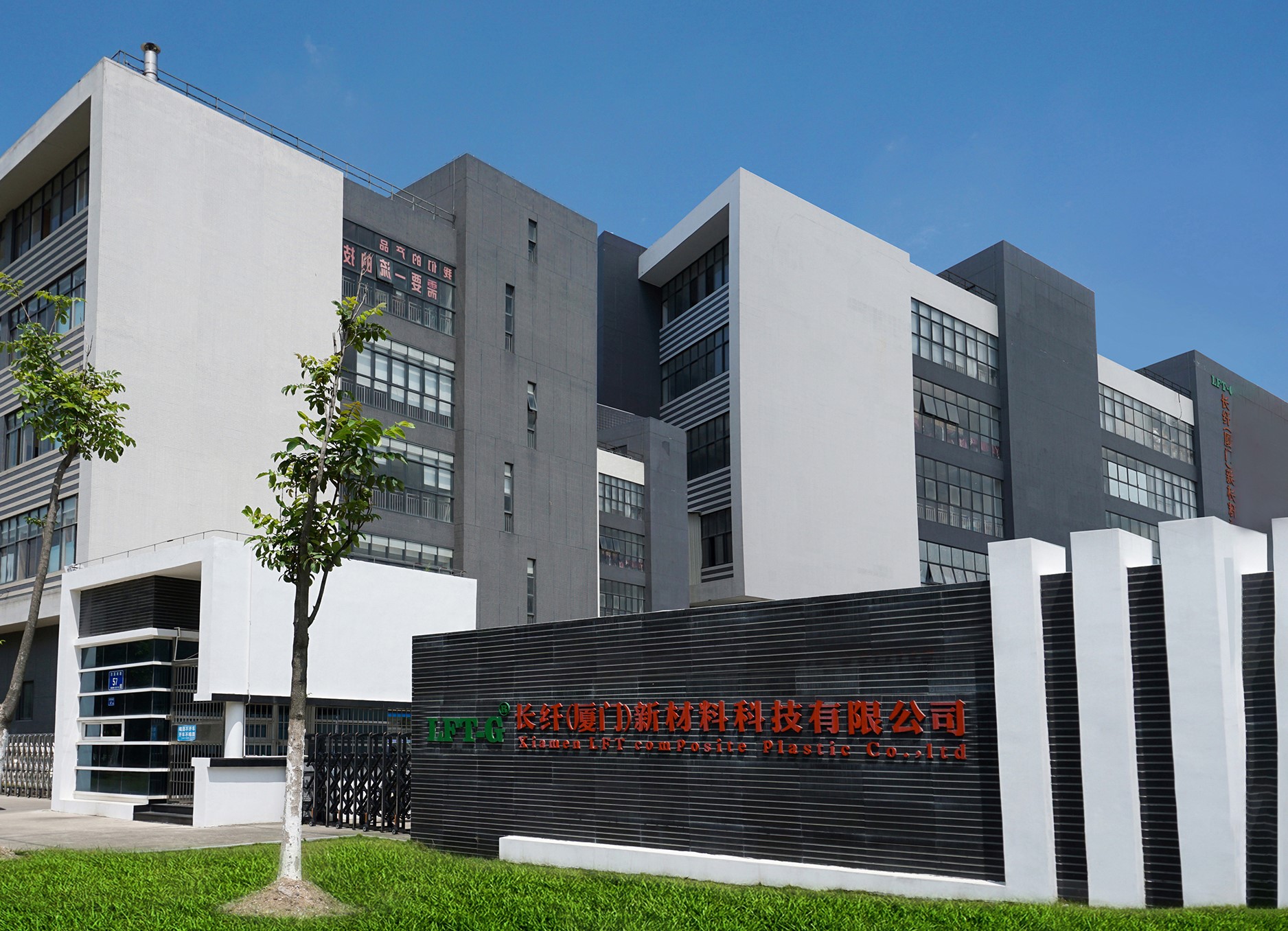

About us

We will offer you:

1. LFT & LFRT material technical parameters and leading edge design.

2.  Mold front design ang recommendations.

3. Provide technical support such as injection molding and extrusion molding.

Frequently asked questions

Q: How to choose the  reinforcement method and length of the material when using long fiber reinforced thermoplastic material?

A: The selection of materials depend on the requirements of products. It is necessary to assess how much the content is reinforced and how much length is more appropriate, which are depending on the performance requirements of the products.

Q: In addition to being suitable for injection molding, long fiber products can be extruded or other processes?

A: LFT long glass fiber and long carbon fiber are mainly used for injection molding, and can also extrusion plate profile tube and mold edges a variety of thermoplastic molding methods.

Q: The cost of long fiber products is higher than raw materials. Does it has a high recycling value?

A: The thermoplastic LFT long fiber material can be recycled and  reused very well.
