LFT information

LFT sheet is a new generation of thermoplastic composite material after GMT (glass fiber felt reinforced thermoplastic) sheet. It is composed of long fiber as reinforcement material and polypropylene (PP), PA, PET as matrix material.

In the automobile industry and many fields, there is an urgent need for weight, environmental protection, recyclable, good impact toughness, etc., the above characteristics of LFT sheet is a new composite material which is very forward-looking in line with the global and Chinese development needs.

LFT sheet using method and pressing process:

1, using the volume calculation method or density conversion method between different materials to calculate the product sheet dosage.

2. Cut the LFT sheet into a size roughly the same as the product area and weigh the additional sheet.

3. Preheat it at 220℃ for 8-12 minutes to make it soft.

4, take out, immediately put into the mold of the press, and quickly close the mold (mold temperature at about 90℃).

5. It can be removed 1-3 minutes after mold closing.

6, remove a small number of burrs, flying thorns, the product is ready.

Main application areas of LFT sheet:

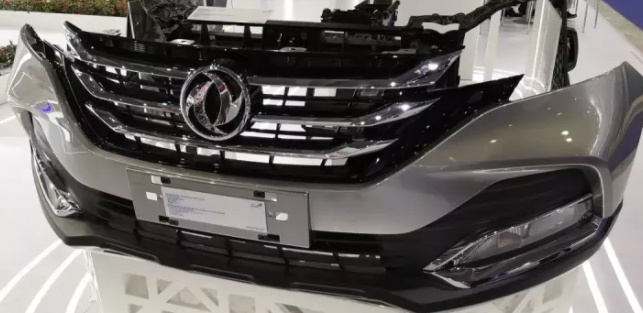

1, auto parts: bumper beam, seat skeleton, front end, instrument panel skeleton, battery bracket, engine cover, pedal board, inner door plate, guard plate, luggage bracket, spare tire frame and other 40 kinds

2, building template: cast-in-place template, prefabricated template

3. Packing case: bottom plate and side plate of container

4. Stadiums and sports equipment: seats, skis, etc

5, chemical equipment: anti-corrosion tower components, filter, reactor components, etc

6, household appliances: air conditioning outdoor machine cover, cable grid, frame, etc
