High temperature resistance PA12 long carbon fiber composite resin sports parts automotive

PA12 Plastic

Polyamide (PA) is commonly known as nylon, and long carbon chain nylon refers to the variety of nylon with more than 10 methylene between adjacent amide bonds in the main chain of large molecules, such as PA11, PA12, PA1010, PA1212, PA1012, etc. The performance of PA12 is similar to that of PA11, but due to the shortage of castor oil, the raw material used to produce PA11, all countries are using PA12 instead of PA11.

PA12 is nylon 12, also known as polydodecactam, polylauractam, is a long carbon chain nylon. The basic material for its polymerization is butadiene, a semi-crystalline - crystalline thermoplastic material. Nylon 12 is the most widely used long carbon chain nylon, in addition to most of the general properties of nylon, low water absorption, and has high dimensional stability, high temperature resistance, corrosion resistance, good toughness, easy processing and other advantages. Compared with PA11, another long carbon chain nylon material, the price of butadiene, the raw material of PA12, is only one third of the price of castor oil, the raw material of PA11. It can replace PA11 and be applied in most scenes, and has a wide range of applications in automobile fuel pipe, air brake hose, submarine cable, 3D printing and many other fields.

characteristic

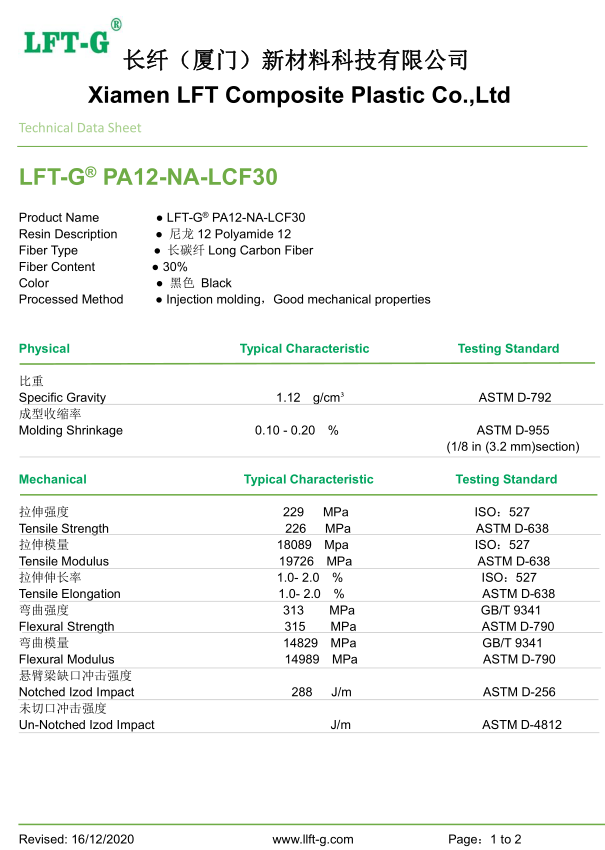

In long chain nylon, compared with other nylon materials, PA12 has great advantages, such as the lowest water absorption rate, the lowest density, low melting point, impact resistance, friction resistance, low temperature resistance, fuel resistance, good dimensional stability, good anti-noise effect. PA12 has the properties of PA6, PA66 and polyolefin (PE, PP) at the same time, achieving the combination of lightweight and physical and chemical properties, and has advantages in performance. The following table shows the performance data:

Advantage

There are a large number of non-polar methylene groups in nylon 12, which makes nylon 12 molecular chain more compliant. The amide group in nylon 12 is polar, and the cohesion energy is very large, it can form hydrogen bonds between the molecules, so that the molecular arrangement is regular. Therefore, nylon 12 has high crystallinity and high strength. Nylon 12 has low water absorption, good low temperature resistance, good air tightness, excellent alkali and oil resistance, medium resistance to alcohol, inorganic dilute acid and aromatic hydrocarbons, good mechanical and electrical properties, and is a self-flameout material.

1) Density

The relative density of nylon 12 is only 1.01-1.03, which is the smallest among all engineering plastics, which has a certain effect on reducing the quality of vehicles and reducing fuel consumption. When compared by unit volume, nylon 12 has advantages in price and performance.

2) Melting point

The melting point of nylon 12 is 172-178℃, slightly lower than nylon 11, can fully meet the requirements of automobile fuel pipe and brake pipe working environment temperature.

3) Water absorption

As we all know, the biggest disadvantage of nylon products is large water absorption, dimensional stability is difficult to ensure. And PA12 has the lowest water absorption rate of nylon products, this is due to the methylene molecules in nylon 12 greatly reduce the hydrophilic groups, which makes nylon 12 has a great advantage.

4) Impact strength

Impact strength is an important technical index, especially for nylon 12 pipe often exposed to air. Nylon 12 under -20℃ and -40℃ according to the standard test, no fracture phenomenon, fully meet the requirements of use. Nylon 12 has excellent impact resistance.

5) Low temperature performance

Nylon 12 has the lowest brittleness temperature of -70 degrees Celsius, so it can be widely used in low-temperature resistant parts.

6) Flexibility

The influence of plasticizer on the physical properties of nylon 12 is concentrated on the elastic modulus of resin. Nylon 12 has three basic types of resin, their main difference is due to the plasticizer content of different forms of flexibility. The elastic modulus of resin decreases with the increase of extractable component content of plasticizer.

7) Low wear and low friction performance

Nylon 12 has excellent low abrasion and low friction properties and self lubricating properties, so the friction noise of nylon 12 products is very low. The table below shows the values obtained for nylon 12 and other plastics by Tabor disk tests.

8) Fuel resistance

In automobiles, the mixture of oxygenated fuel, high aromatic fuel and alcohol currently used can cause the breakdown of many hose materials. After the test, only nylon 11, nylon 12 and fluorocarbon resin elastomers can be used in this environment. Almost other types of nylon melt under the action of automobile fuel, resulting in a change in size.

9) Resistance to zinc chloride solution

Zinc chloride is found under the car. Under certain temperature and humidity, the salt on the road reacts with galvanized steel plate or zinc-containing primer to form the corrosive zinc chloride. In addition, ozone aging, ultraviolet radiation, temperature conditions and so on, will bring different degrees of damage to the parts, reduce the service life.
Nylon 12 is very resistant to zinc chloride solution. Because there is no unsaturated double bond in nylon 12 which is susceptible to ozone attack, ozone aging does not occur. In addition, Nylon 12 UV resistance is also excellent.

10) Excellent electrical performance

The long carbon chain structure of nylon gives it excellent electrical properties. Because of the low water absorption of long carbon chain nylon, it still has excellent dielectric properties in the humid environment, which is not possessed by short carbon chain nylon such as nylon 6 and nylon 66.

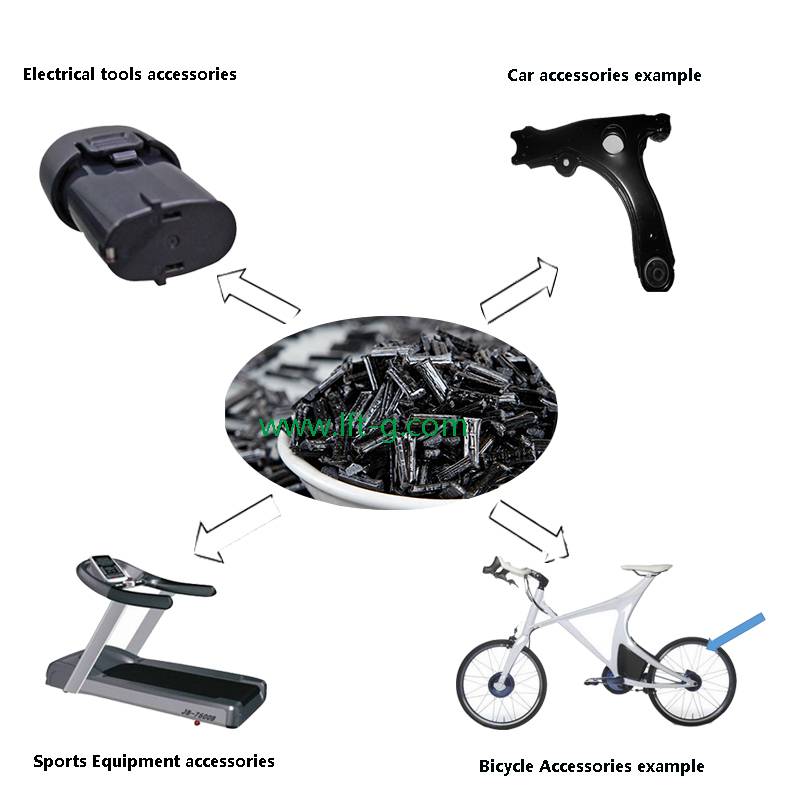

Application

PA12 is the most widely used long carbon chain nylon. In addition to having most of the general properties of ordinary nylon, it has low water absorption, high dimensional stability, high temperature resistance, corrosion resistance, good toughness, easy processing and other advantages. Compared with PA11, another long carbon chain nylon material, the price of butadiene, the raw material of PA12, is only one third of the price of castor oil, the raw material of PA11. It can replace PA11 and be applied in most scenes, and has a wide range of applications in automobile fuel pipe, air brake hose, submarine cable, 3D printing and many other fields.
